LITHIUM-ION CELLS

UNRIVALLED POWER DENSITY

Our high-performance cells can be used in fully customizable solutions for multiple market needs. High usable energy, over a wide state of charge, thanks to Nanophosphate technology. Fast and consistent delivery of power requires the support of world-class chemistry. Lithium Werks’ Power Cells dominate their field.

APR18650m1B

Lithium Werks’ 18650 cells are capable of delivering very high power due to its use of patented Nanophosphate® battery technology.

Based on lithium iron phosphate chemistry (LiFePO4), the cells are inherently safe over a wide range of temperatures and conditions. Whether the application requires outstanding cycle life or stable float reliability, the Lithium Werks’ 18650 cells are suitable for a wide variety of power, pulse, or stand-by applications.

Lithium Werks’ 18650 cells are capable of delivering very high power due to its use of patented Nanophosphate® battery technology. Based on lithium iron phosphate chemistry (LiFePO4), the cells are inherently safe over a wide range of temperatures and conditions. Whether the application requires outstanding cycle life or stable float reliability, the Lithium Werks’ 18650 cells are suitable for a wide variety of power, pulse, or stand-by applications.

Nanophosphate® battery technology offers stable chemistry, faster charging, consistent output, excellent cycle life and superior cost performance. It provides the foundation for safe systems while meeting the most demanding customer requirements. Multiple layers of protection are employed at the chemistry, cell and system level to achieve an energy storage solution with superior safety and abuse tolerance compared to metal oxide lithium-ion chemistries.

Specifications

Nominal Ratings
Voltage3.3V
Capacity @ 23°C Typ (Min)1.2Ah (1.1Ah)
Energy @ 23°C3.63Wh
Impedance (1kHz AC) Typ12.6mΩ
Cycle Life @ 1.5A Charge / -10A discharge, 100% DOD>2000 Cycles
Discharging
Max. Continuous Discharge Current30A
Max. Pulse Discharge Current (10s)50A
Minimum Voltage / HPPC Pulse2V / 1.6V
Temperature-30°C to 55°C
Charging
Recommended Charge Current1.1A
Max. Continuous Charge Current4A
Max. Pulse Charge Current (10s)10A
Recommended Charge Voltage3.6V
Terminate Charge @ 3.6V<50mA
HPPC Pulse Voltage3.8V
Float Voltage3.5V

Temperature Range (reduce charging current to <40mA when under 0°C)

0°C to 55°C
Storage
Storage Temperature-40°C to 60°C

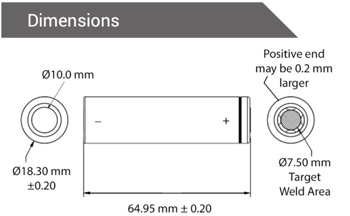

Mechanical
DiameterØ18.3 +/- 0.2mm
Length64.95 +/- 0.2mm
Mass39.5 +/- 1.0g
Certifications
TransportationUN 3480 (UN38.3), CIQ
SafetyUL 1642, IEC 62133-2
Transportation
Shipped@ 30% SOC
Part Number 300749-006

PRODUCT DATA SHEETS

Applications

  • Energy storage
  • Uninterruptible Power Supplies
  • Communication technologies
  • Aerospace
  • Electrified mobility devices
  • Industrial equipment
  • Medical devices
  • Toys

ANR26650m1B

Lithium Werks’ 26650 cells are capable of delivering very high power due to its use of patented Nanophosphate® battery technology.

Based on lithium iron phosphate chemistry (LiFePO4), the cells are inherently safe over a wide range of temperatures and conditions. Whether the application requires outstanding cycle life or stable float reliability, the Lithium Werks’ 26650 cells are suitable for a wide variety of power, pulse, or stand-by applications.

Lithium Werks’ 26650 cells are capable of delivering very high power due to its use of patented Nanophosphate® battery technology. Based on Lithium Iron Phosphate chemistry (LiFePO4), the cells are inherently safe over a wide range of temperatures and conditions. Whether the application requires outstanding cycle life or stable float reliability, the Lithium Werks’ 26650 cells are suitable for a wide variety of power, pulse, or stand-by applications.

Nanophosphate® battery technology offers stable chemistry, faster charging, consistent output, excellent cycle life and superior cost performance. It provides the foundation for safe systems while meeting the most demanding customer requirements. Multiple layers of protection are employed at the chemistry, cell and system level to achieve an energy storage solution with superior safety and abuse tolerance compared to metal oxide lithium-ion chemistries.

Specifications

Nominal Ratings

Voltage

3.3V

Capacity @ 23°C Typ (Min)

2.6Ah (2.5)

Energy @ 23°C

8.25Wh

Specific Power

2600W/kg

Impedance (1kHz AC) Typ

6mΩ

Cycle Life @ 1C/1C, 100% DOD

>4000 Cycles

Discharging

Max. Continuous Discharge Current

50A

Max. Pulse Discharge Current (10s)

120A

Minimum Voltage / HPPC Pulse

2V / 1.6V

Temperature

-30°C to 55°C

Charging

Recommended Charge Current

2.5A

Max. Continuous Charge Current

10A

Max. Pulse Charge Current (10s)

20A

Float Voltage

3.45V

Recommended Charge V & Cut-Off Current

3.6V, taper to 125mA

Temperature Range (reduce charging current to 250mA when under 0°C)

0°C to 55°C

Storage

Storage Temperature

-40°C to 60°C

Mechanical

Diameter

Ø25.96 +/- 0.5mm

Length

65.15 +/- 0.5mm

Mass

76g +/- 1.0g

Certifications

Transportation

UN 3480 (UN38.3), CIQ

Safety

UL 1642, IEC 62133-2

Transportation

Shipped

Via Air @ 30% SOC

Via Sea @ 50% SOC

Part Number 300732-006

PRODUCT DATA SHEETS

Applications

  • Energy storage
  • Uninterruptible Power Supplies
  • Communication technologies
  • Aerospace
  • Electrified mobility devices
  • Industrial equipment
  • Medical devices
  • Toys
